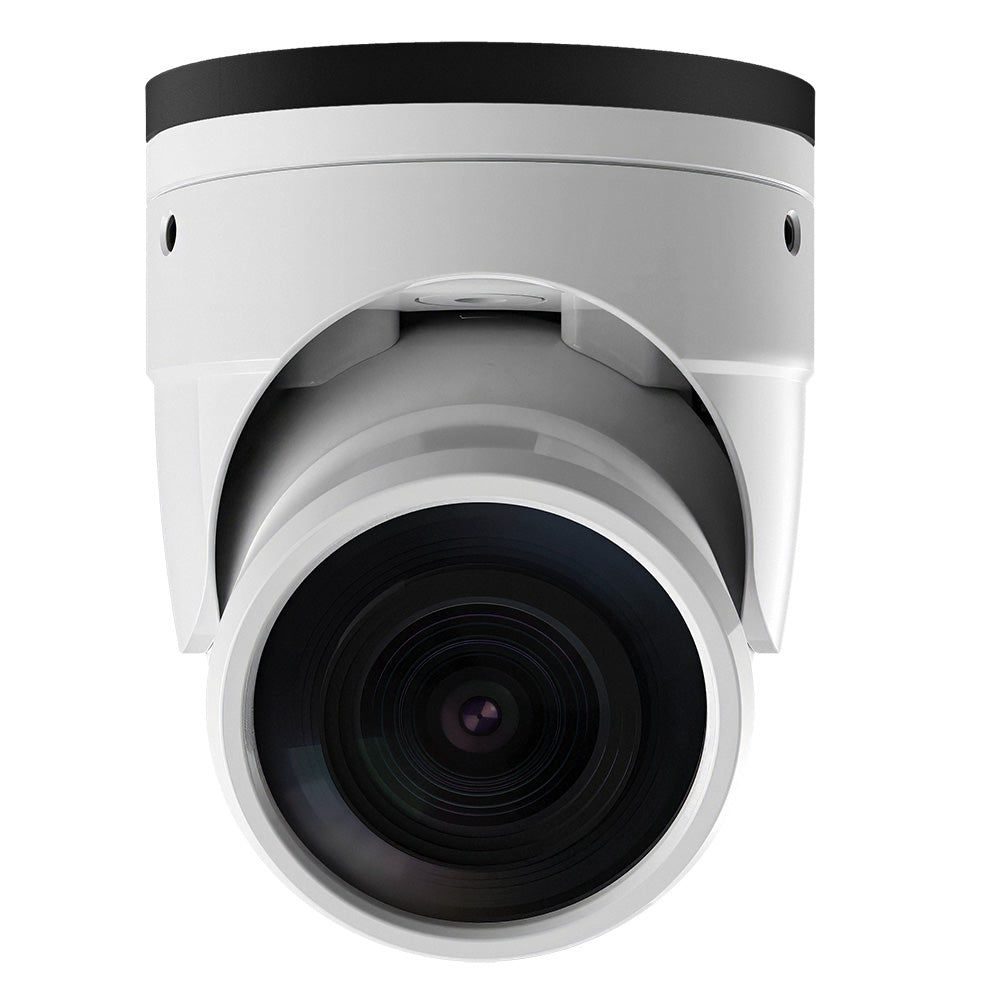

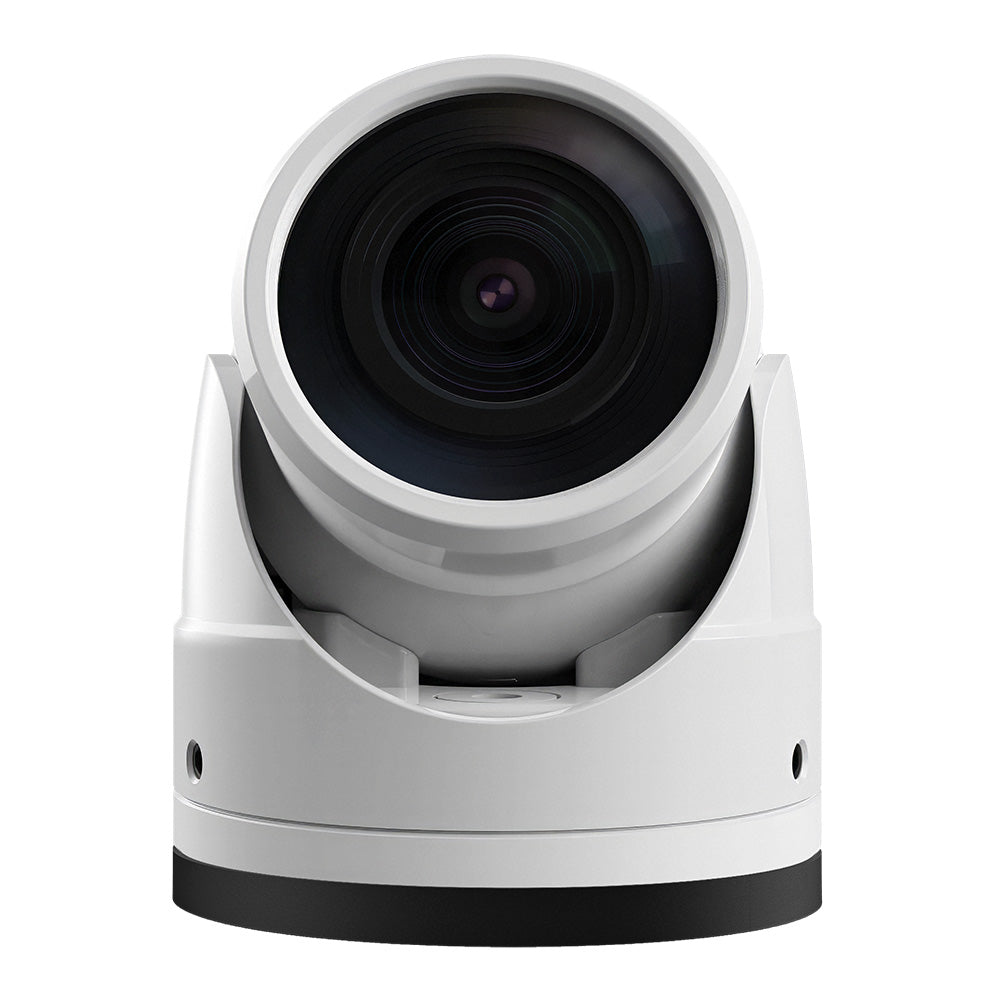

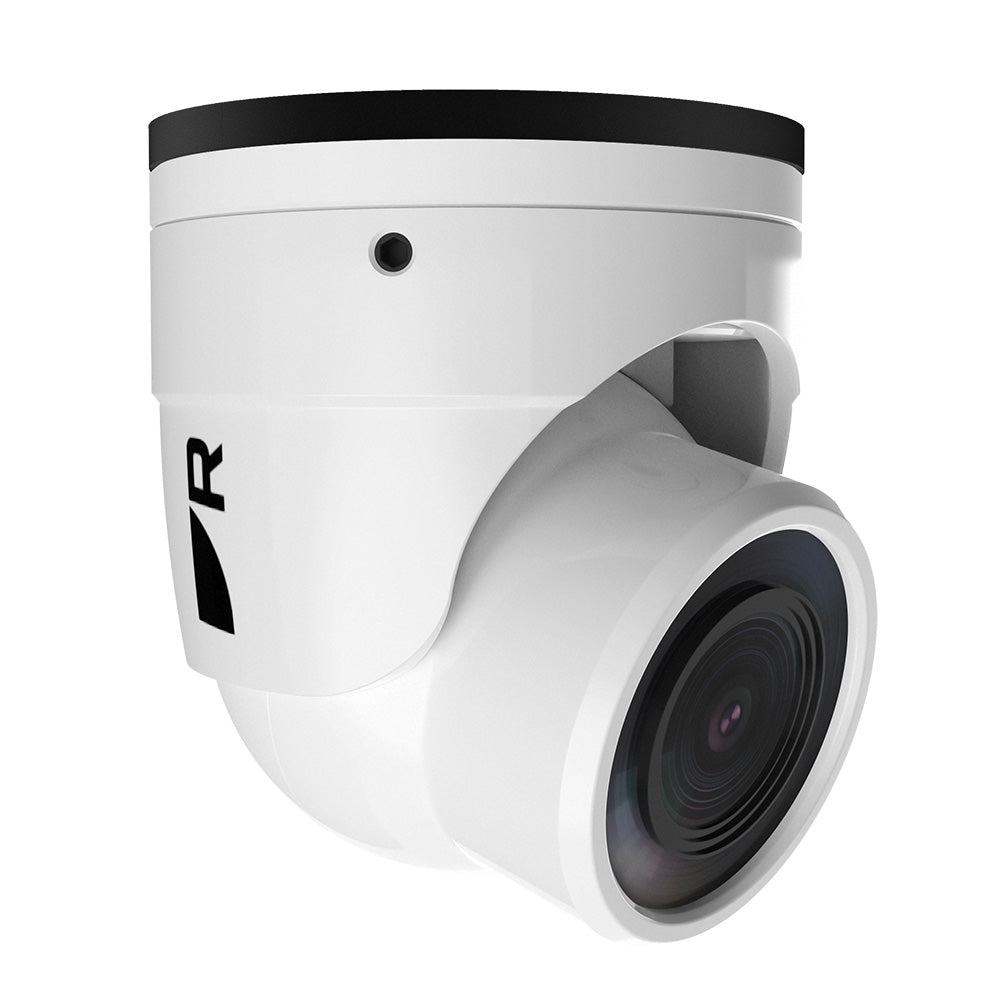

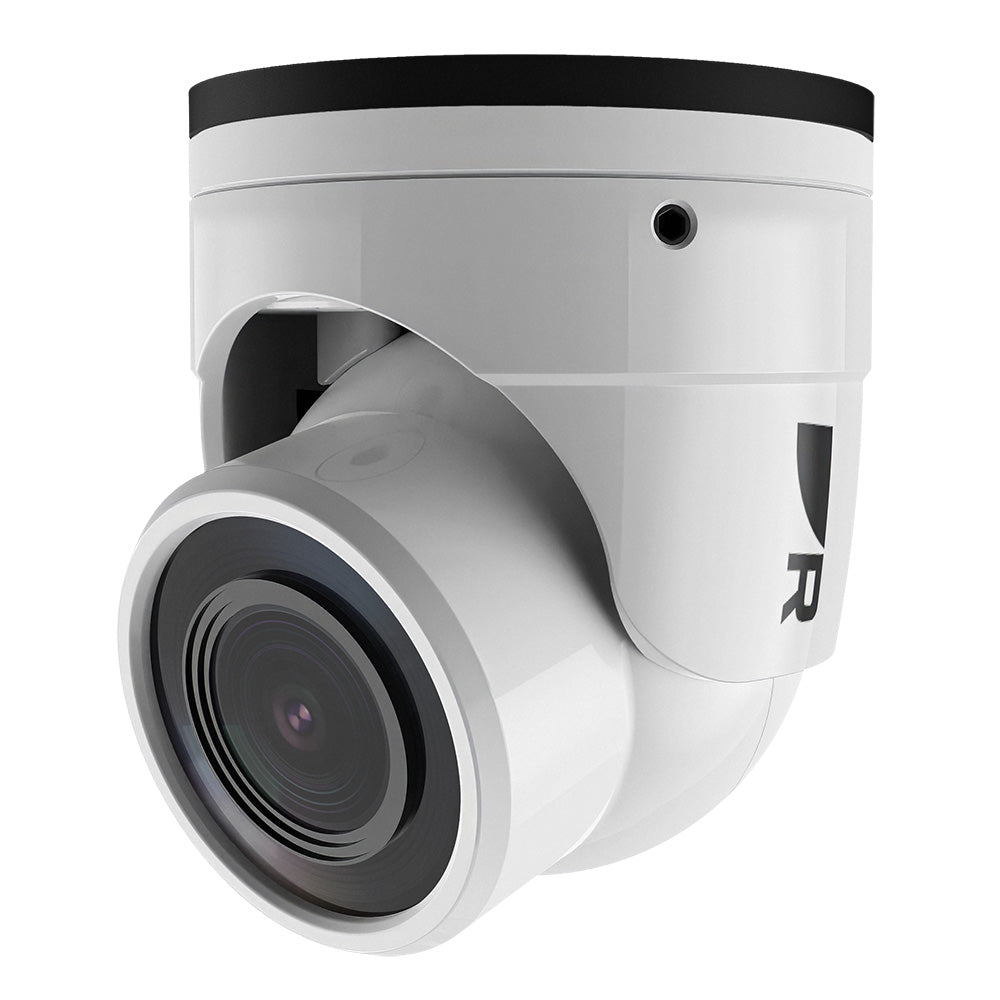

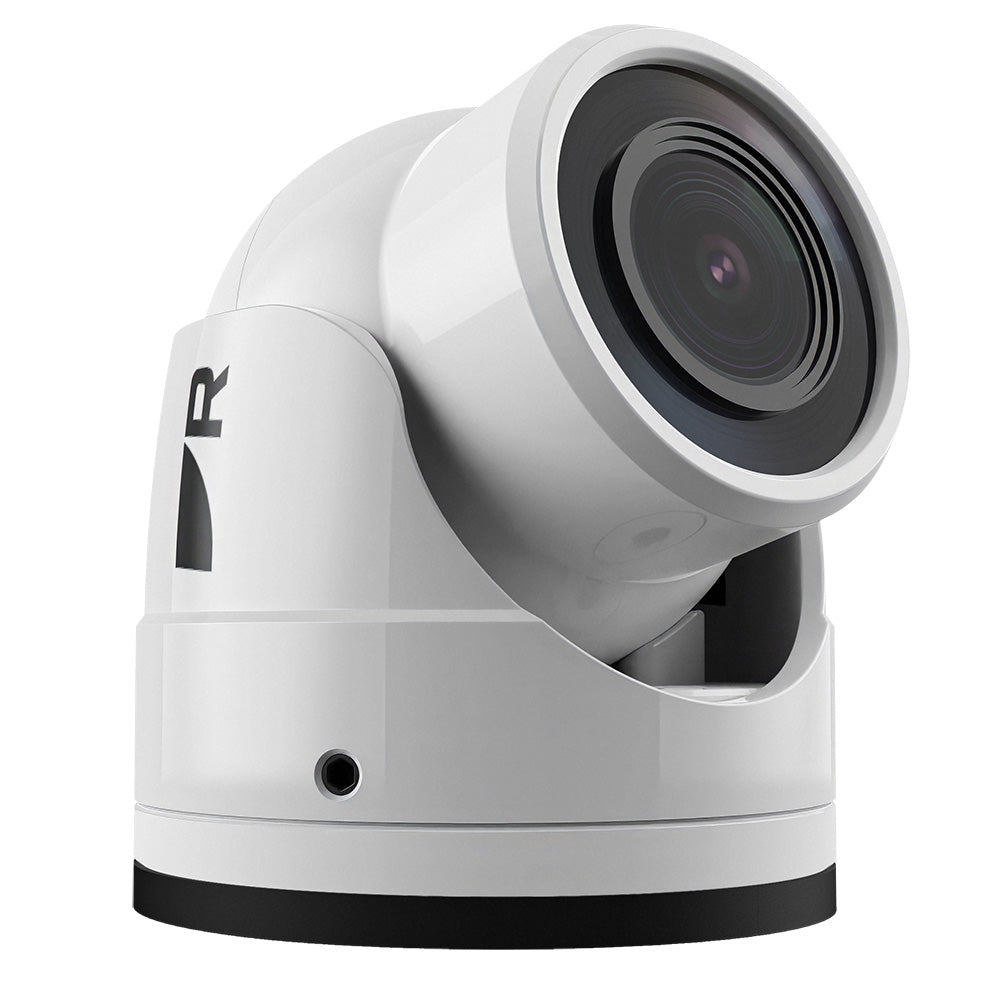

Raymarine CAM400 Marine Day/Night IP Camera - White [E70716]

CAM400 Marine Day/Night IP Camera - White

The CAM400 is a rugged fixed-mount marine IP camera for above-deck and below-deck monitoring applications, designed for seamless integration with Raymarine Axiom or Axiom 2 chartplotters. It can be deployed as a standalone camera or as part of a multi-camera system, supporting flexible monitoring and viewing across connected displays and networked devices.

Use CAM400 to assist with close-quarters maneuvering, monitor blind spots, check on crew and passengers, or enhance onboard security. With integrated infrared illumination, CAM400 provides dependable image performance in daylight, low light, and nighttime.

Features:

• High-definition marine IP camera for Raymarine Axiom systems.
• Full HD 1080p video.

  •    Wide-angle 129° horizontal field of view.

• Optimized for docking, onboard monitoring, and security applications.
• Enhanced situational awareness;* pair with a Raymarine AR200 sensor to unlock augmented reality on your Axiom display.
• Overlay AIS targets, waypoints, and chart details directly onto the live video image.
• Integrated infrared illumination for low-light and nighttime awareness.
• Flexible installation options with Power over Ethernet (PoE) or 12 V DC.
• Multi-stream video support for integration with onboard systems.
• Image flip and invert functions for ball-up and ball-down mounting.
• Compact, low-profile design for discreet installation.
• Rugged, marine-grade construction for above-deck environments.
• Factory-installed RayNet® Ethernet pigtail with no waterproof RJ-45 coupler required.
• Optional on-screen distance lines when integrated with LightHouse 5 on Axiom 2 systems

In the Box:

• CAM400 - includes a 1.4 m (4.8 ft) integrated pigtail with PoE (RayNet) male, factory reset switch, and direct-power breakout
• Camera collar
• Documentation
• Camera base
• Mounting gasket (pre-fitted to the camera base)
• Hex wrench (Allen key)
• Bushings (3 x)
• Silicone rings (3 x)
• Flat washers (3 x)
• Grub screws (3 x)
• M4 x 30 mm self-tapping mounting screws (3 x)
